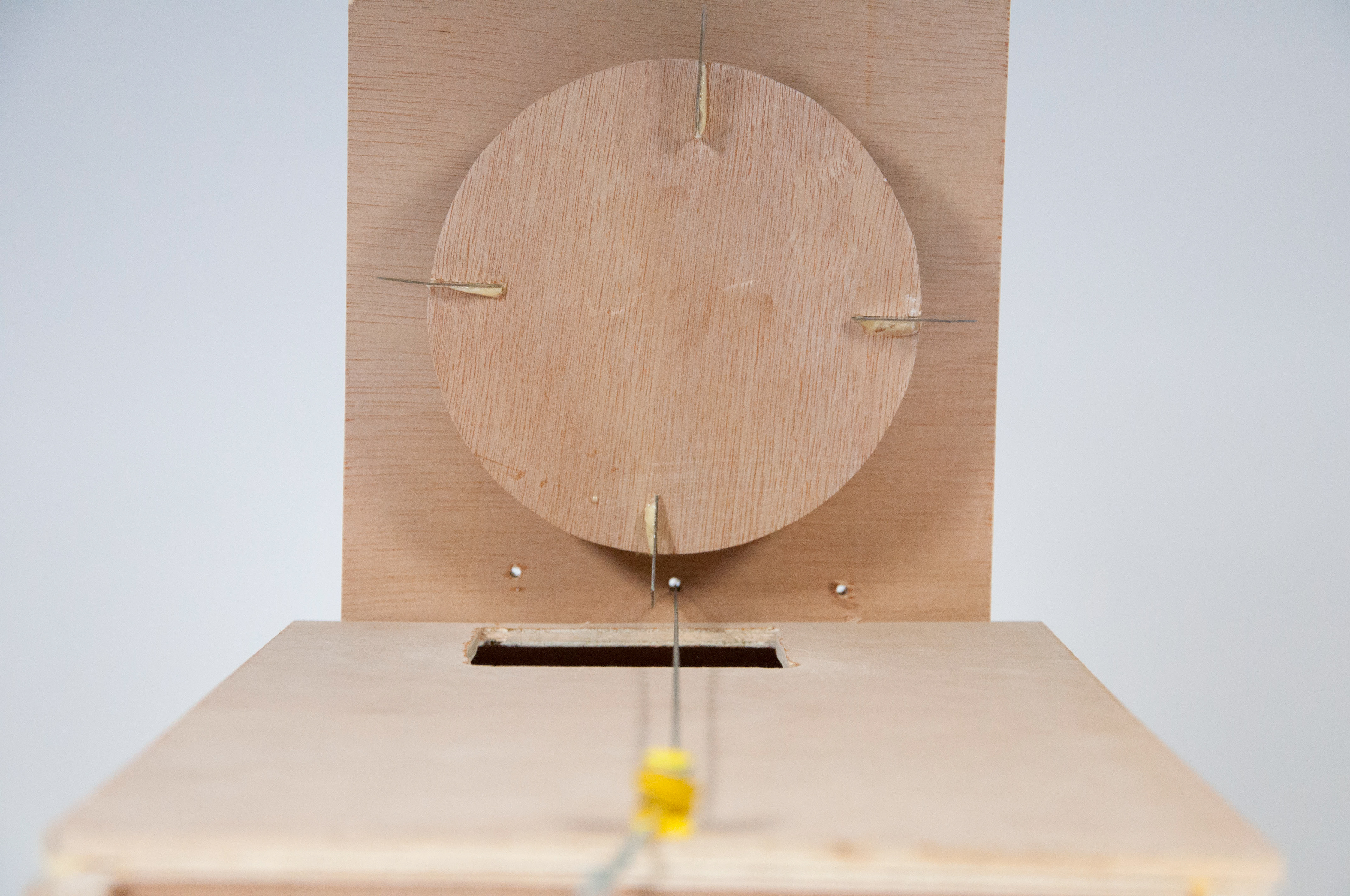

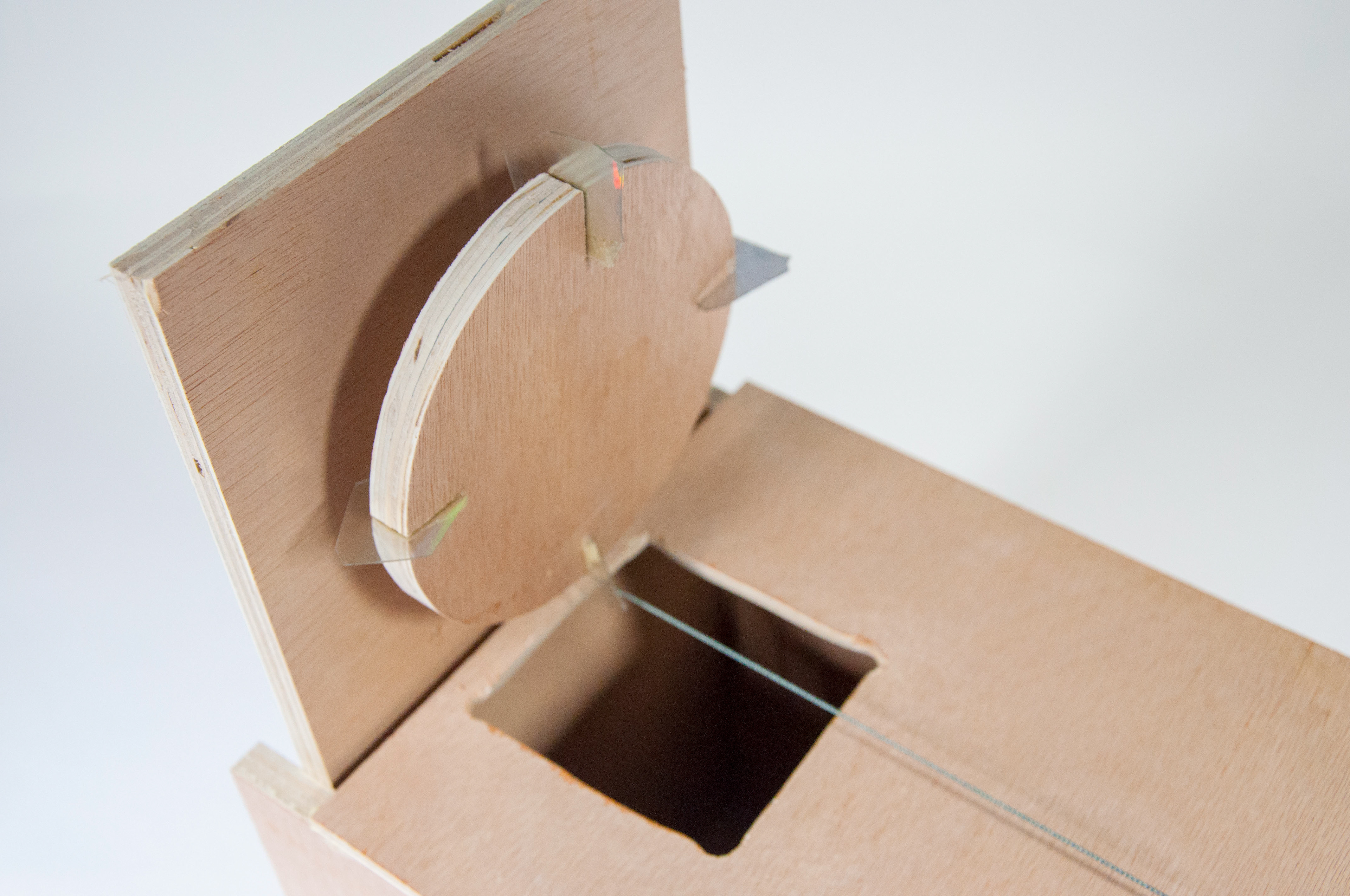

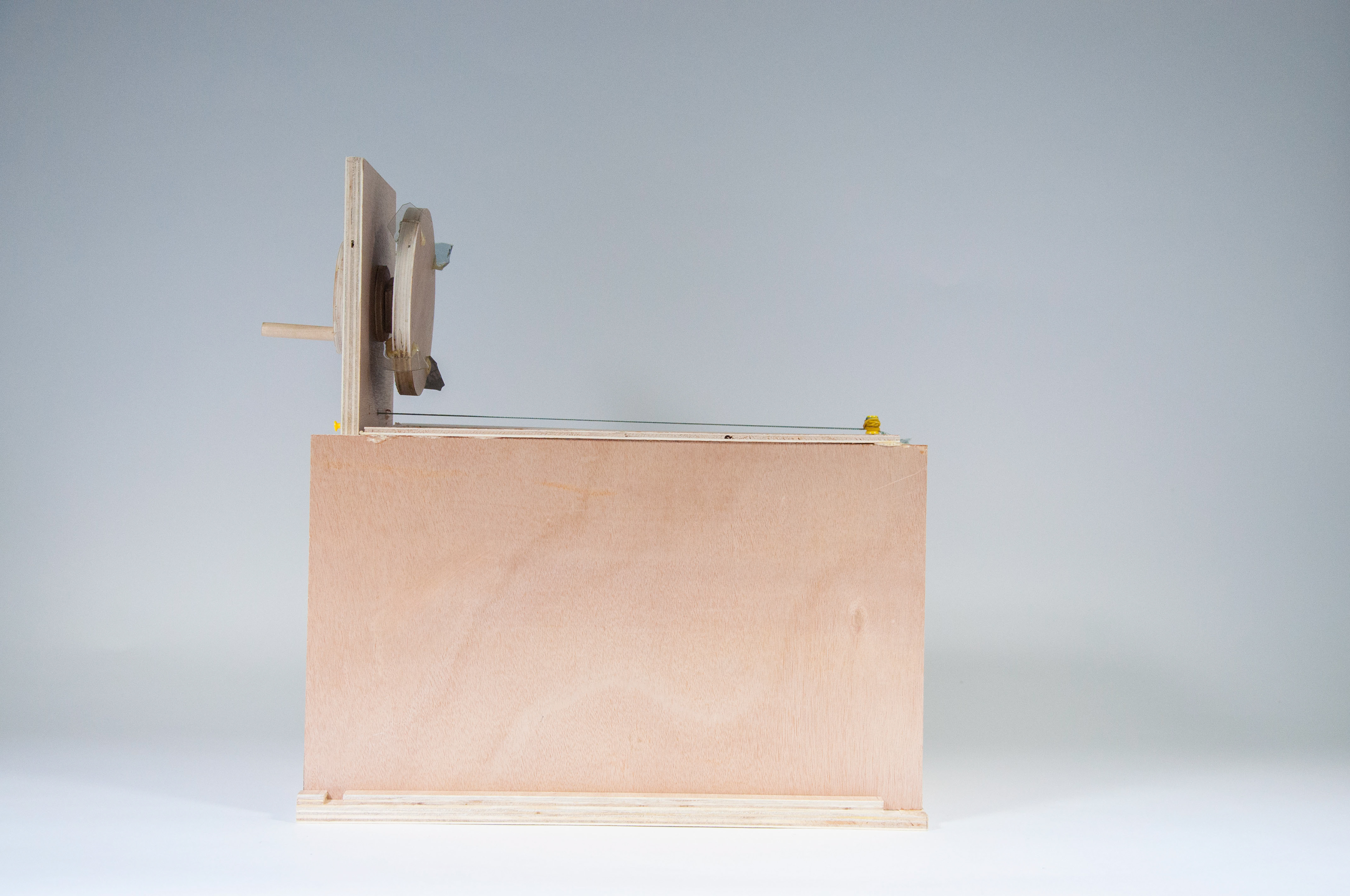

Final Outcome
Process Work

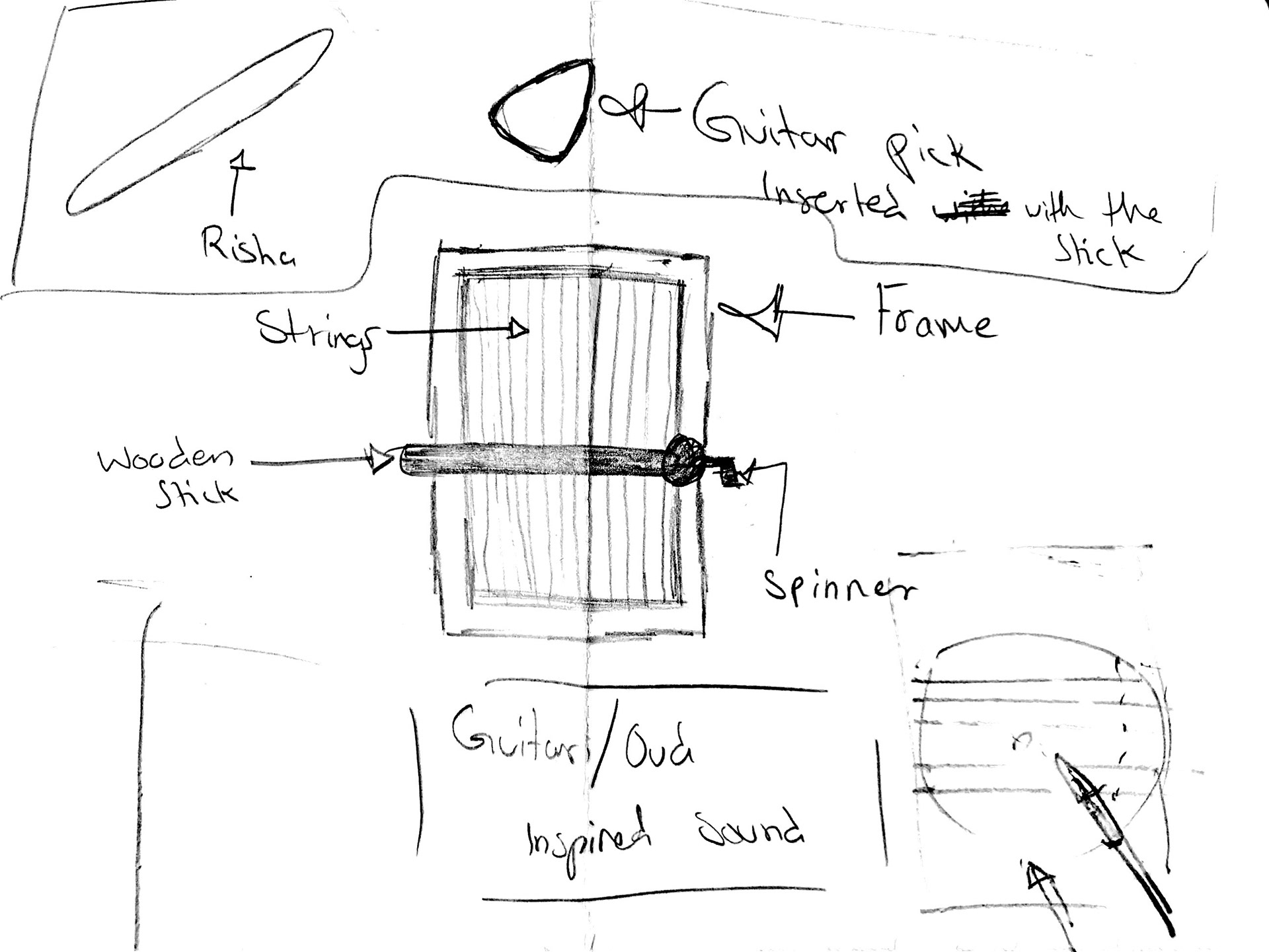

My first sketch of the design of the object, inspired by a guitar and oud. After getting comments from my professor, I moved on to a different sketch of the object.
The final sketch for the object. Materials to use are also stated.

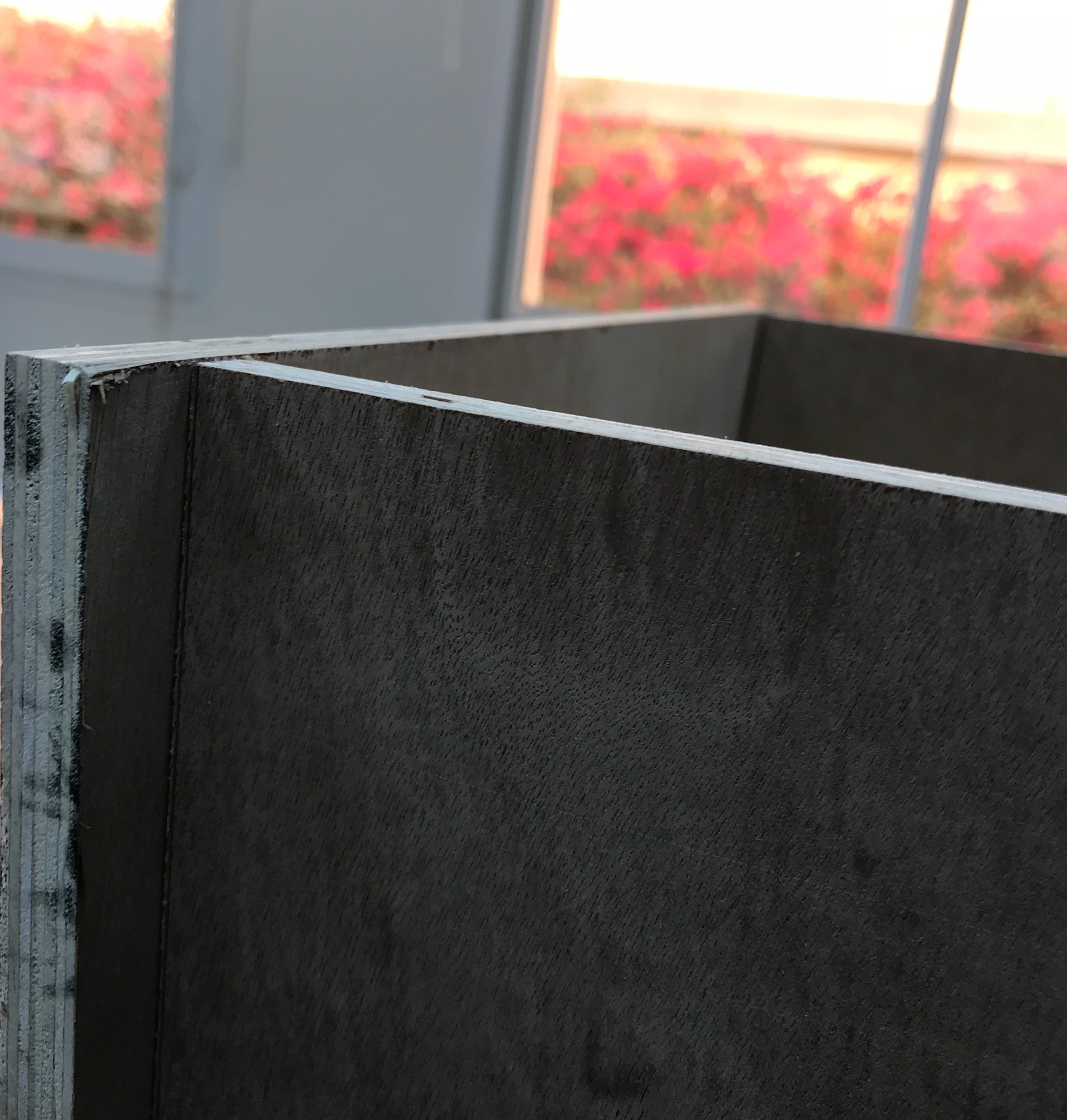

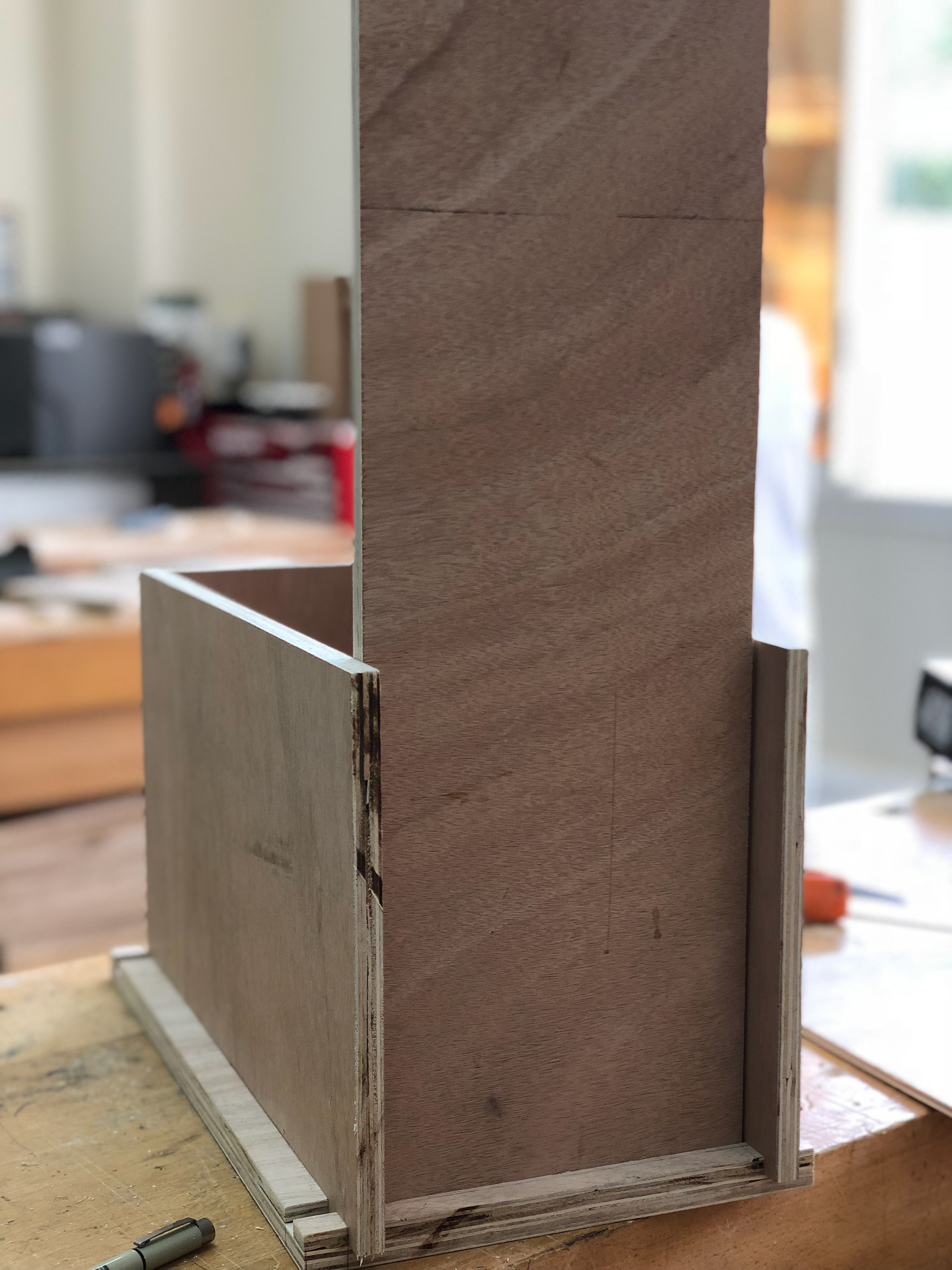

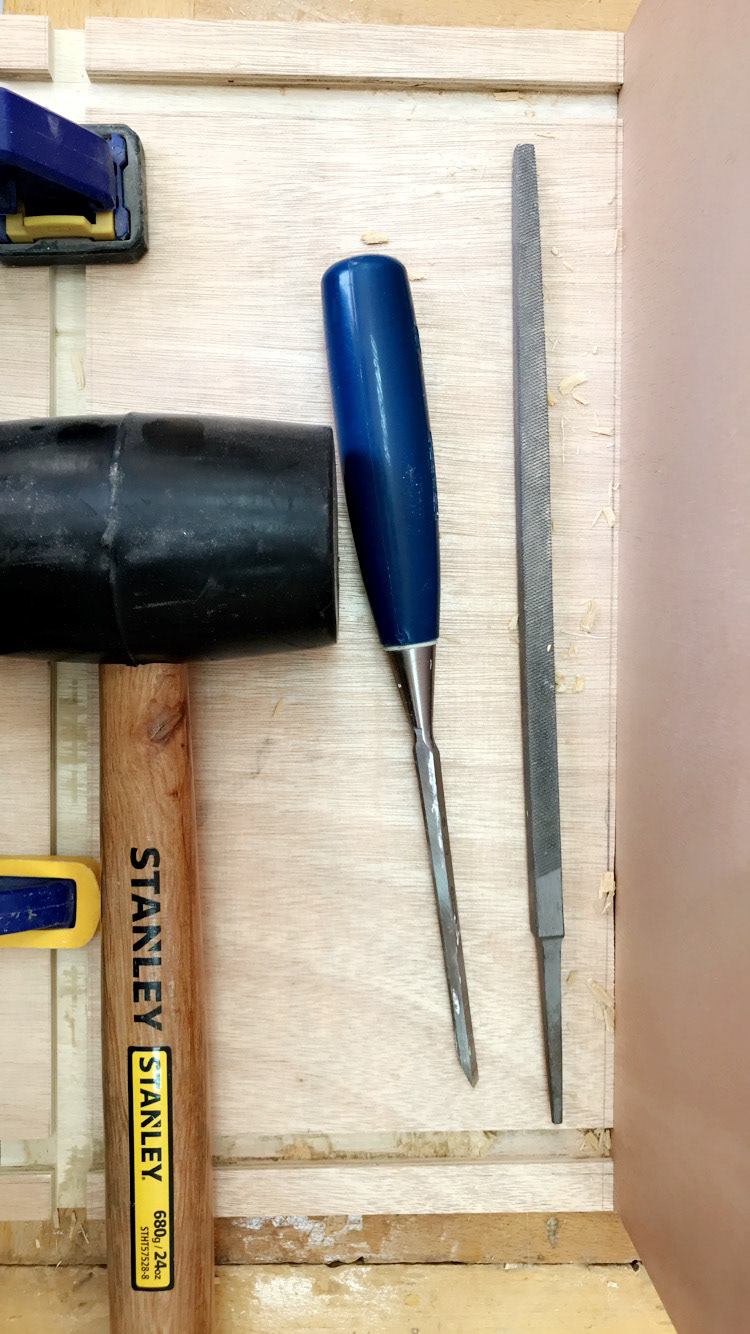

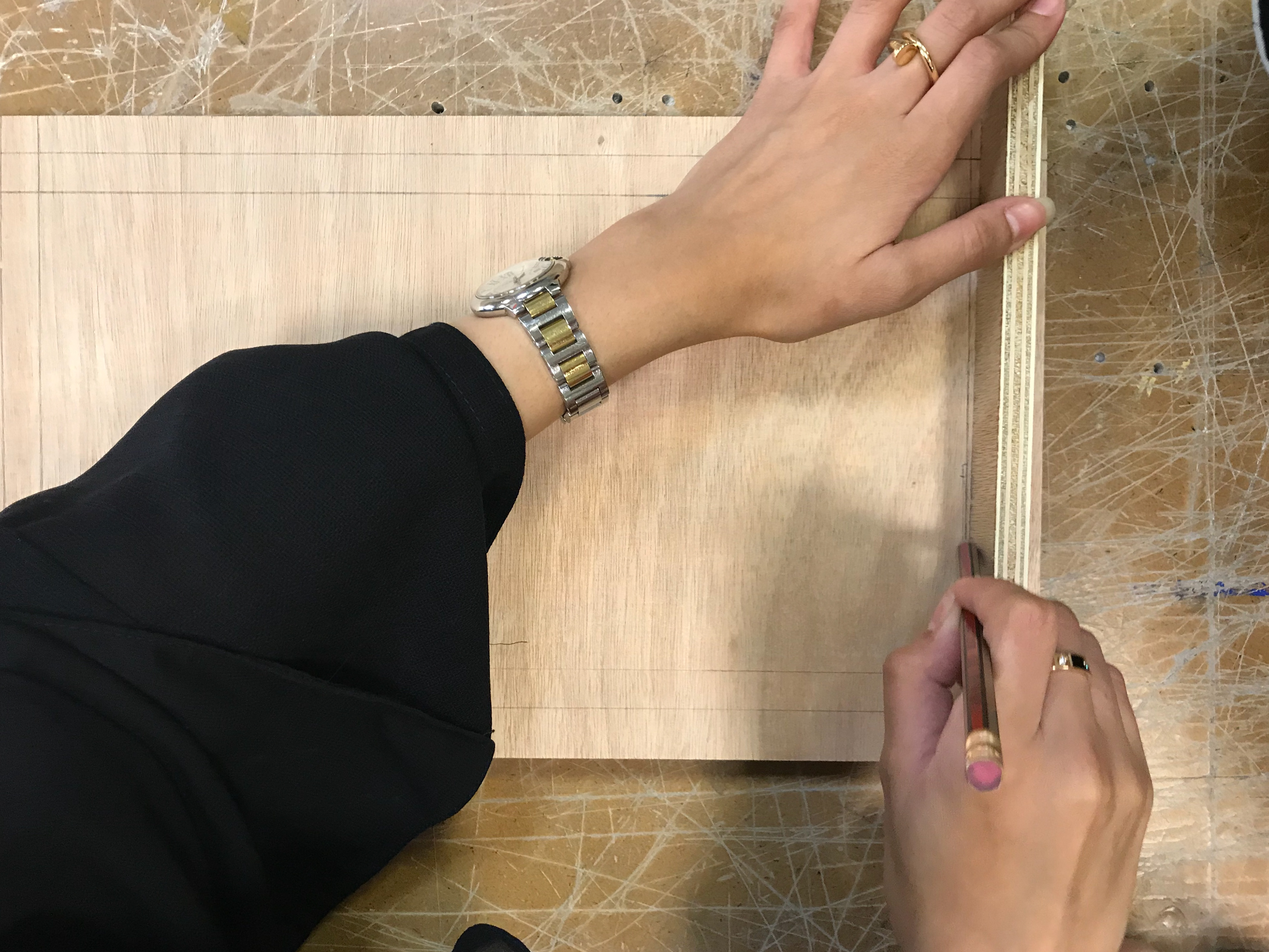

So at first, I started measuring for the dado cut. After noticing a minor mistake of my Dado cut, I decided to file and scratch off the extra layer of wood that made my walls uneven. The result can be seen on the right picture.

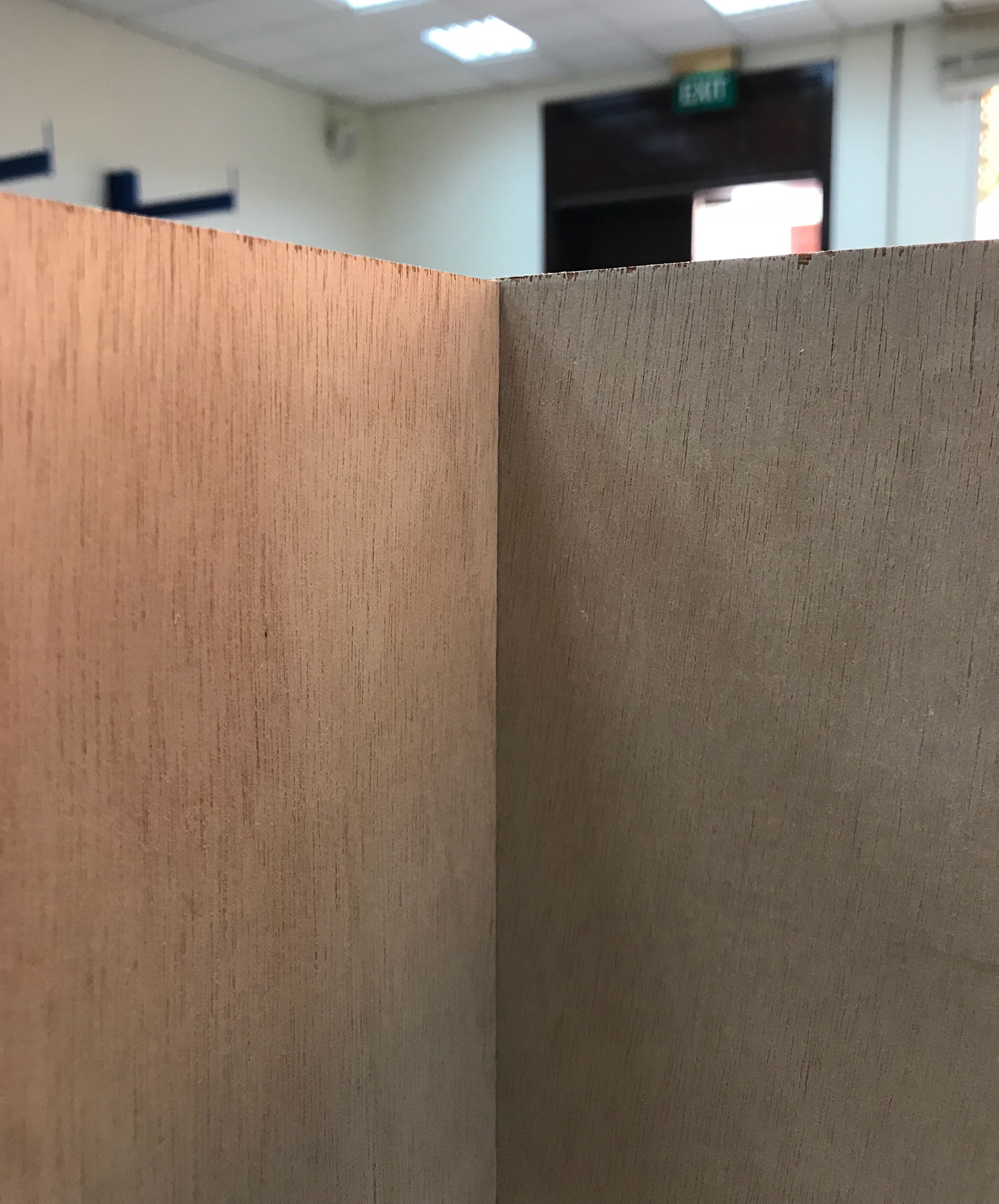

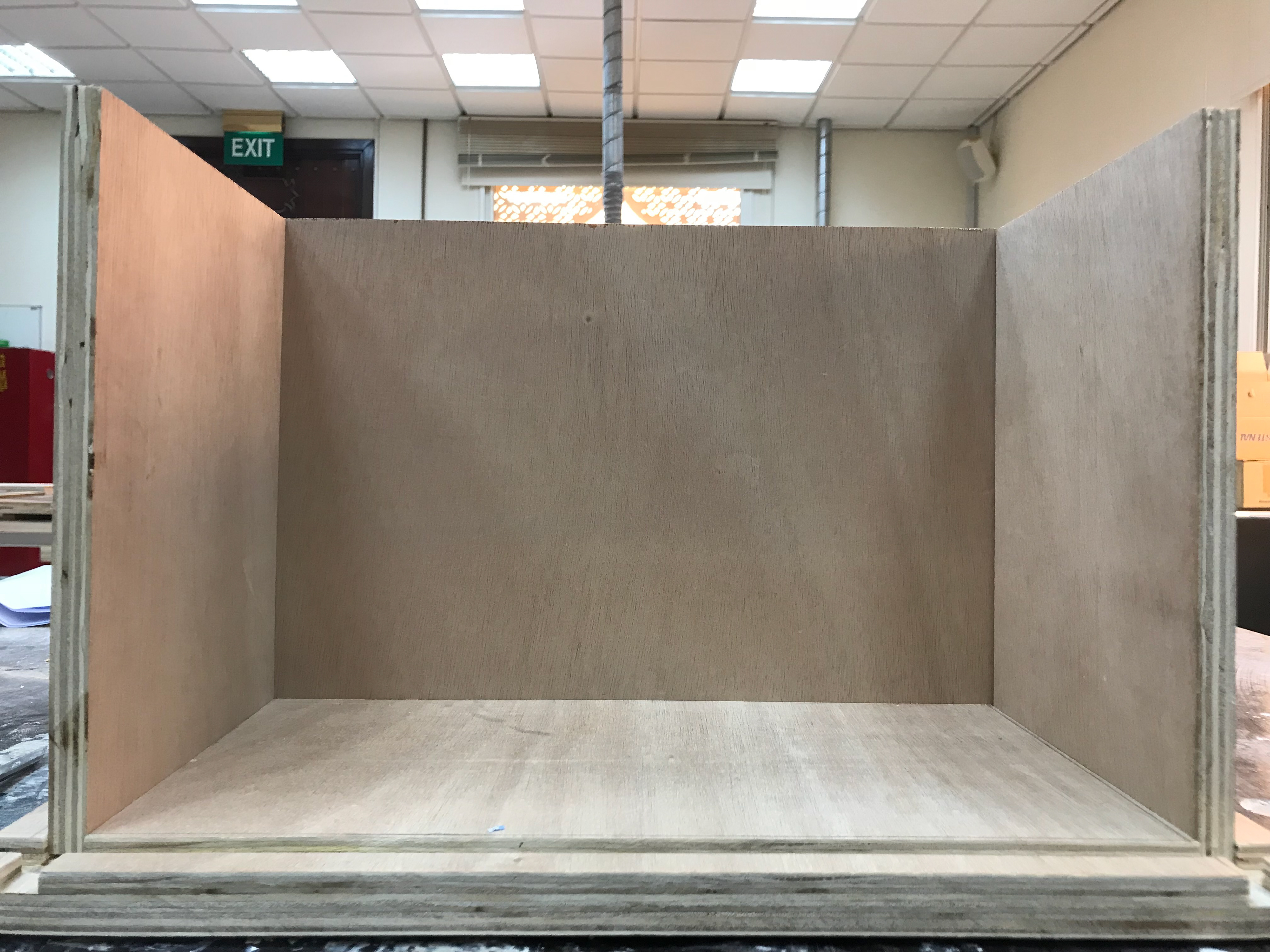

Close up of my walls.

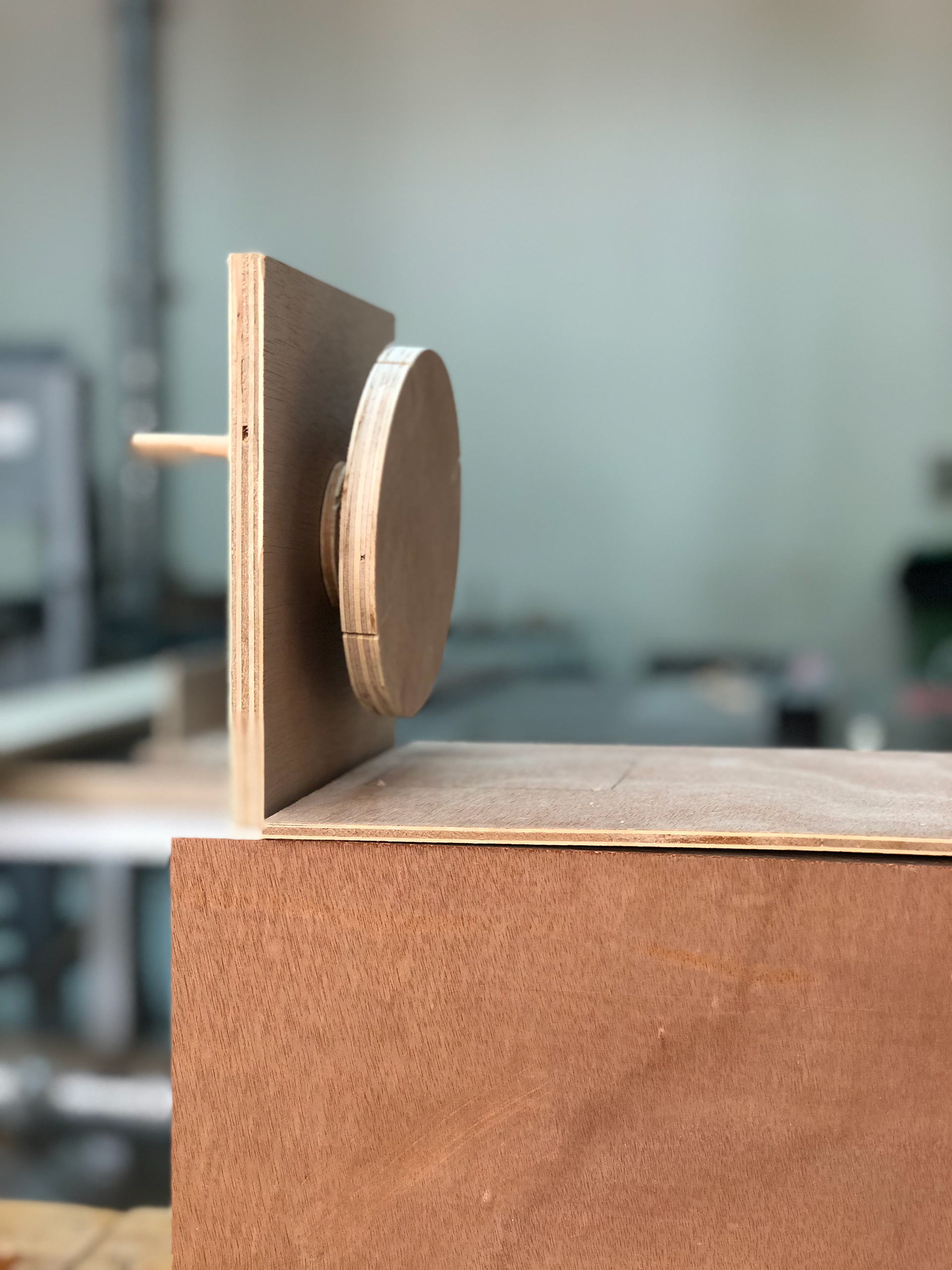

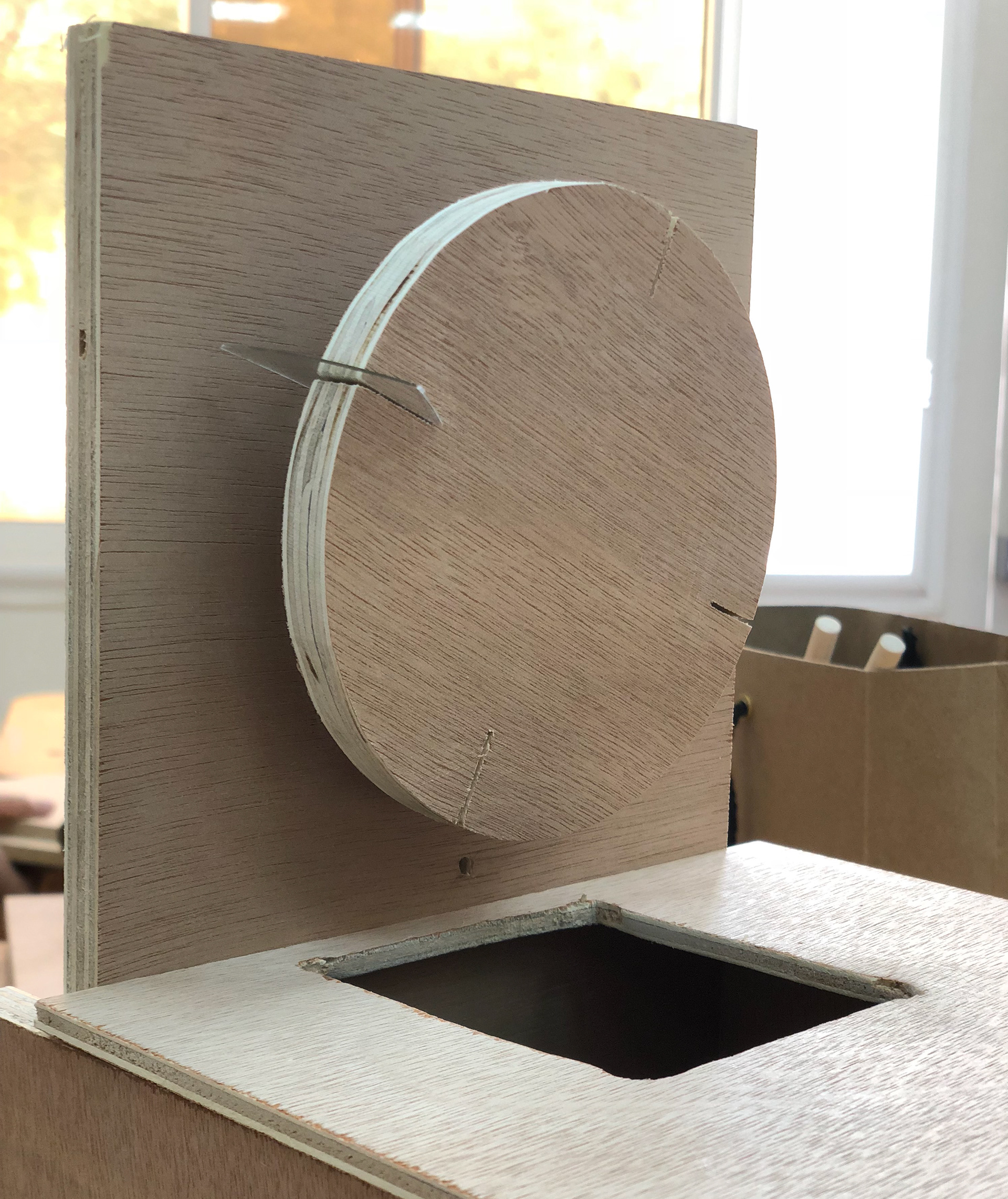

In the first picture, I worked on the board and the height I wanted my wheel to be at and managed to drill a hole in that place. Second picture, I worked on the wheel itself and it turned out to be almost perfect. I faced a couple of challenges with the loose fit, because it turned the wheel to be unstable and wobbly. To fix that problem, I placed a stopper (small wooden square piece) to stable the wheel while it’s turning.

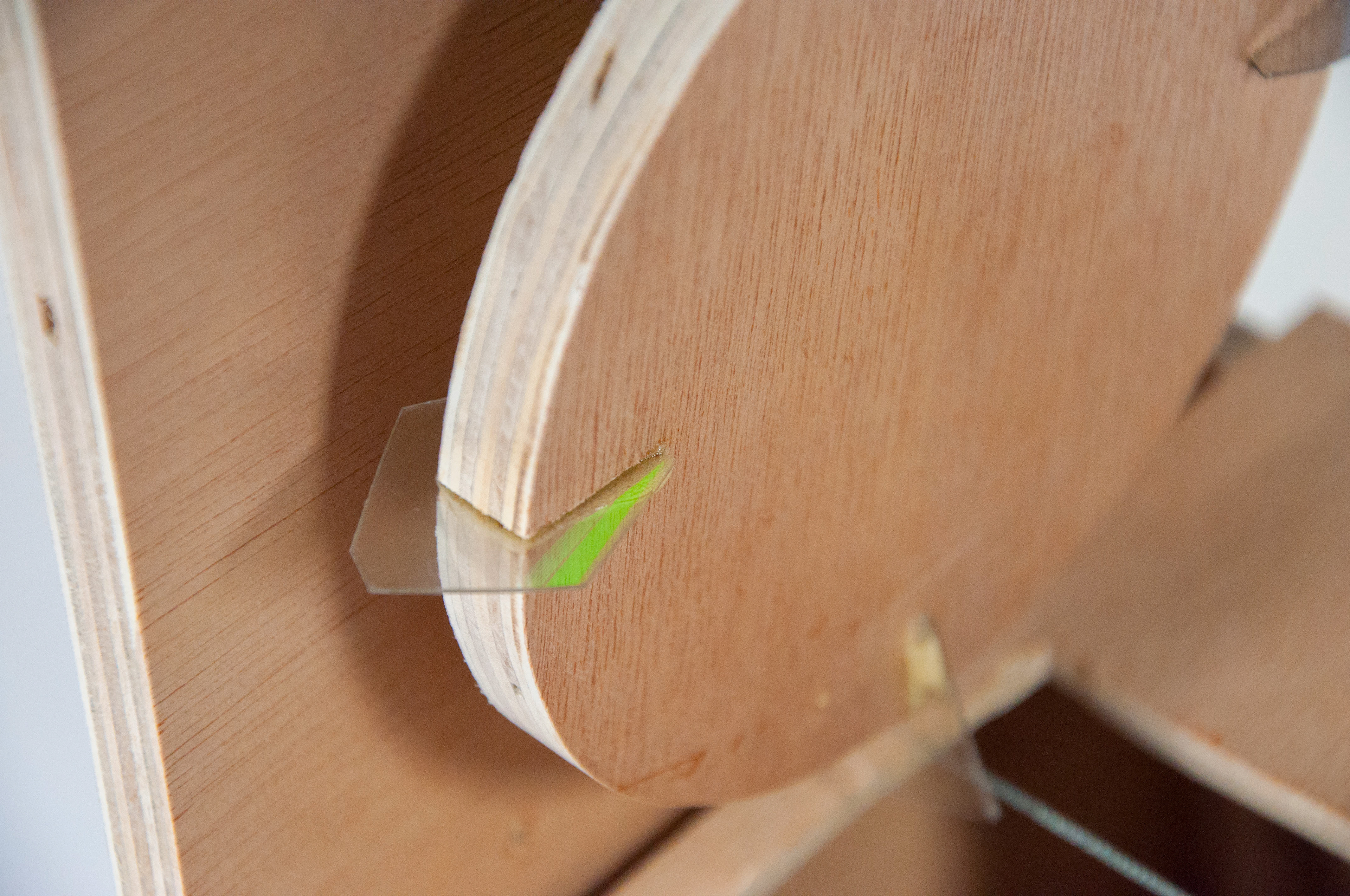

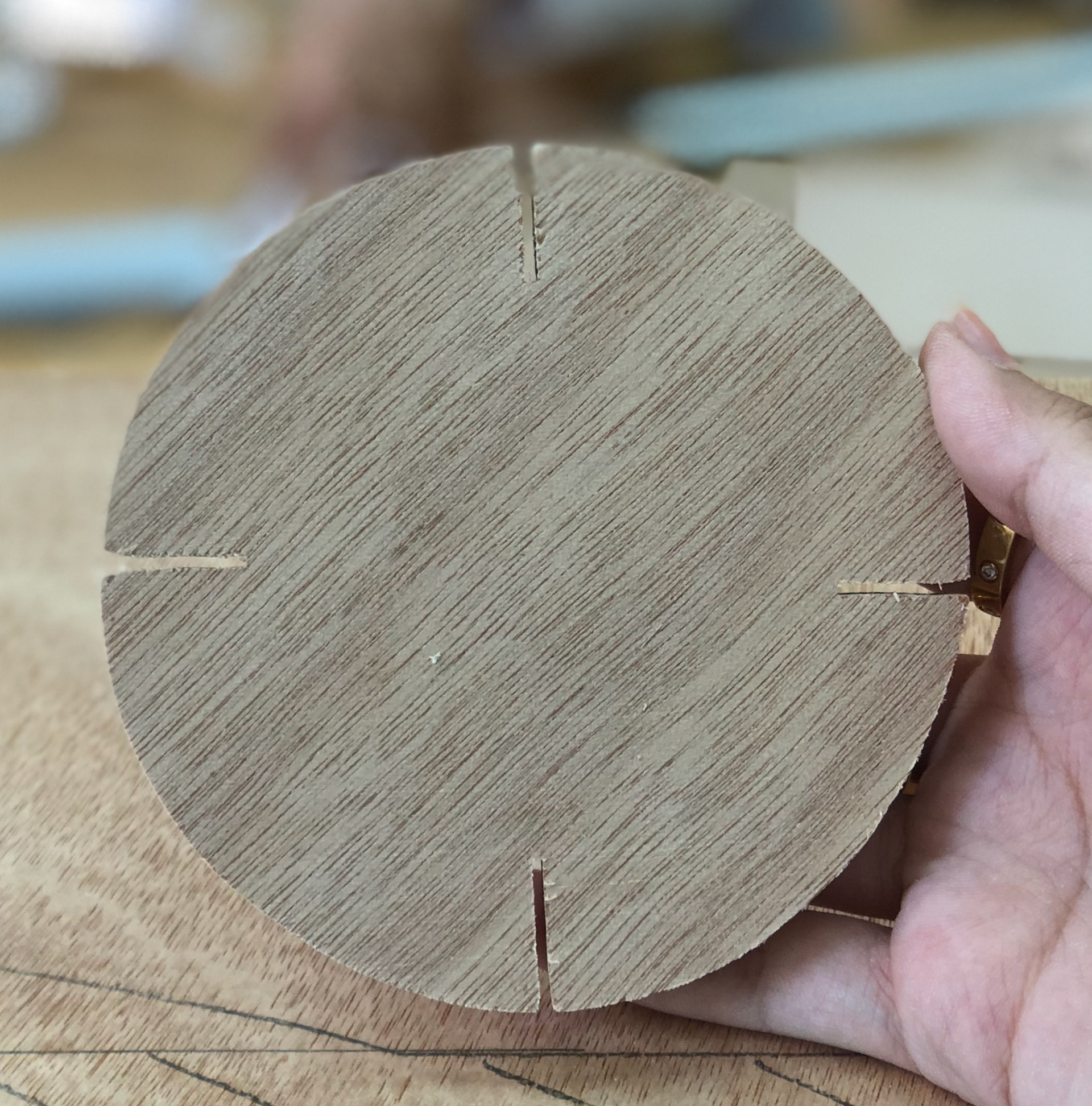

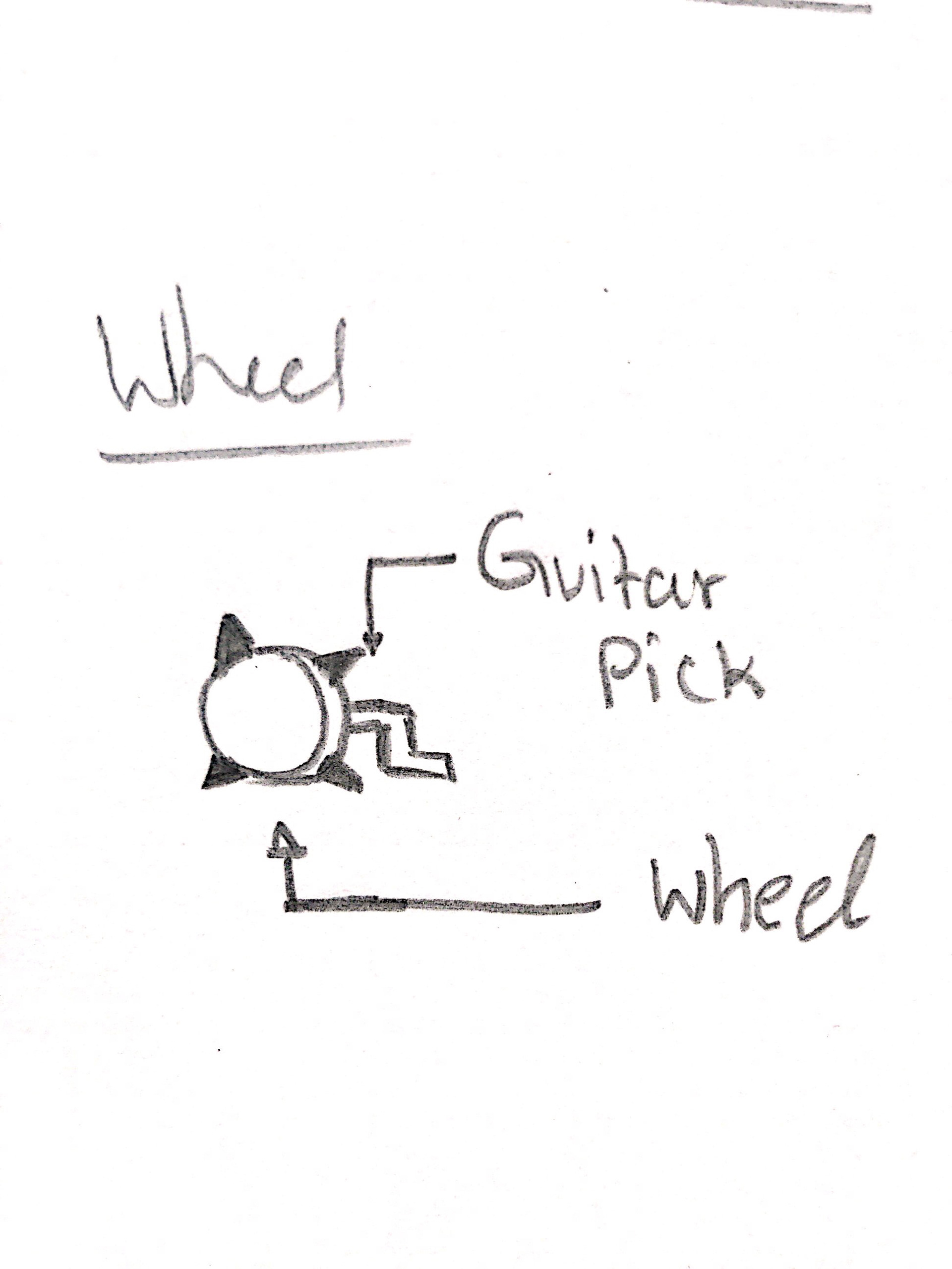

Details of my wheel. I will attach the 4 guitar pecks (I will use cut out CD pieces instead) in the vertical cut out lines.

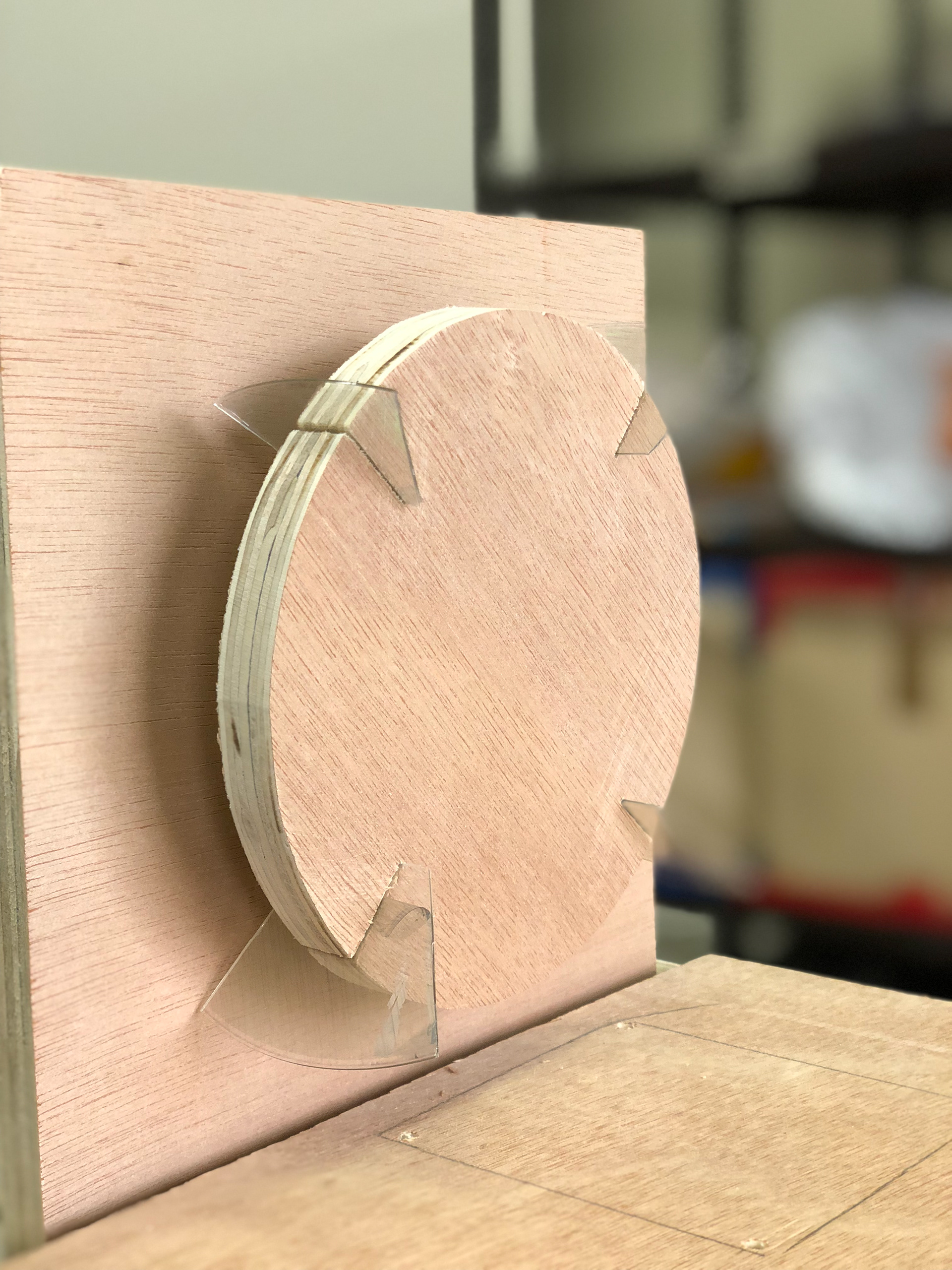

Process of making a guitar peck out of a CD and the final design of the wheel.

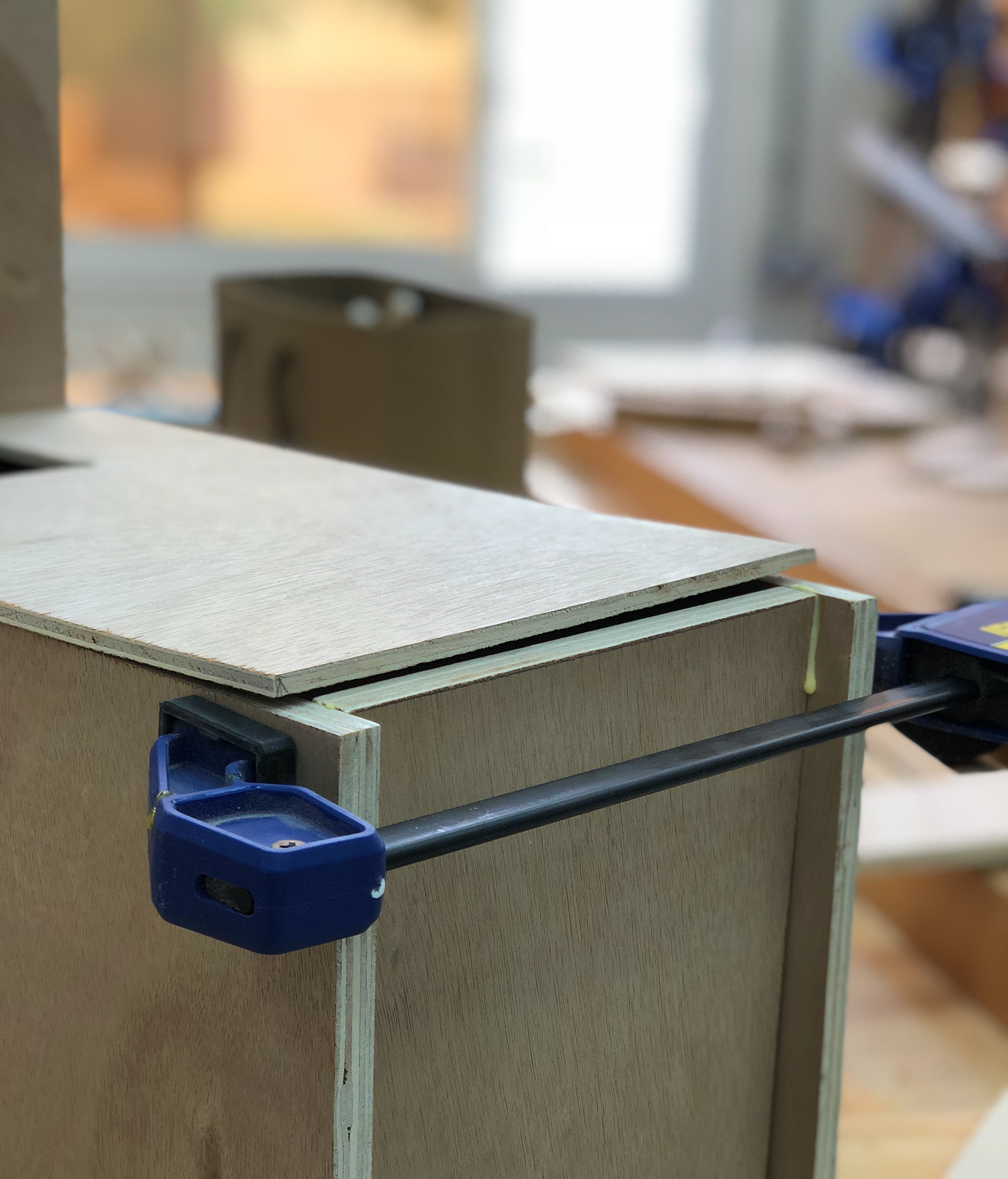

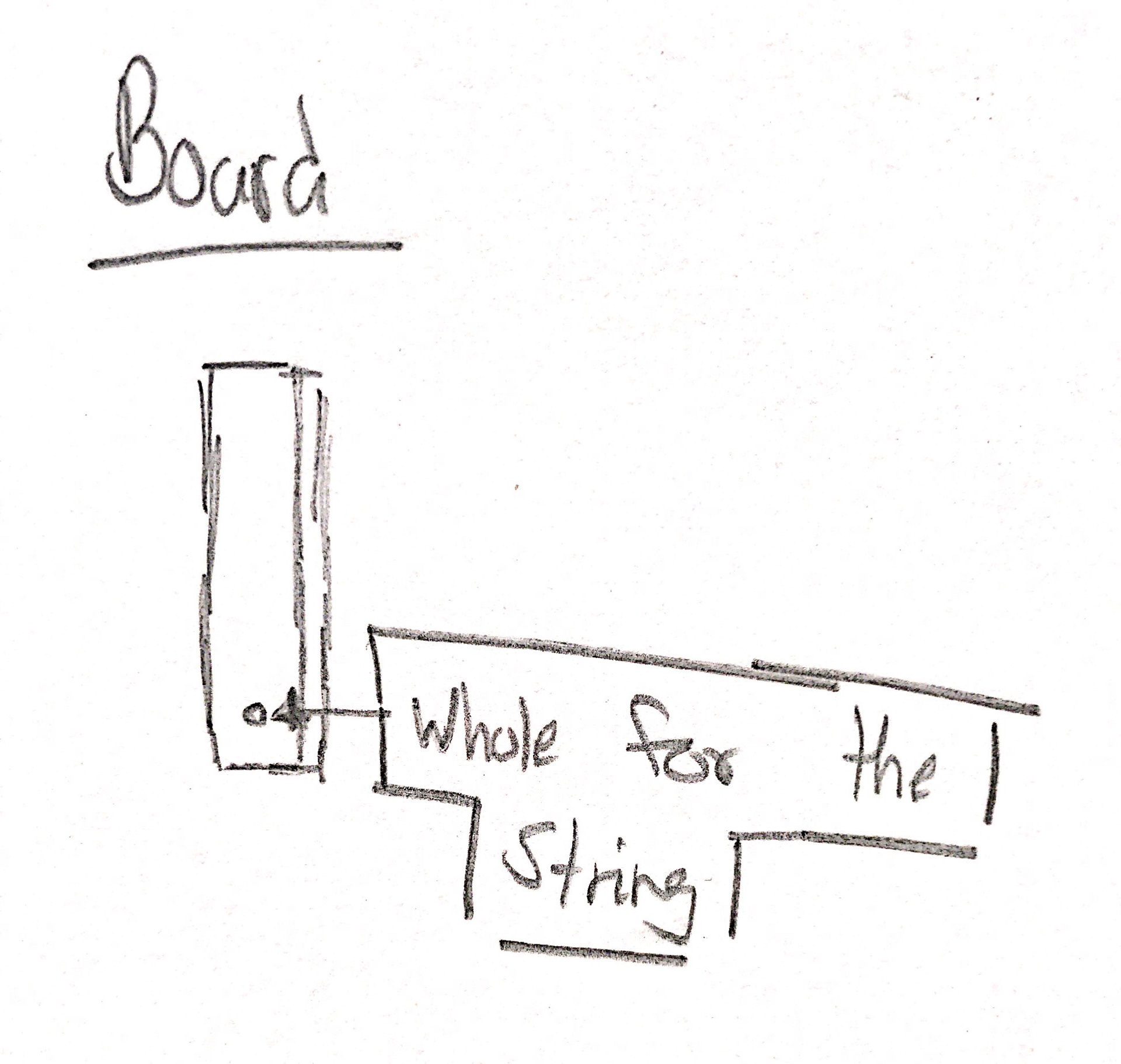

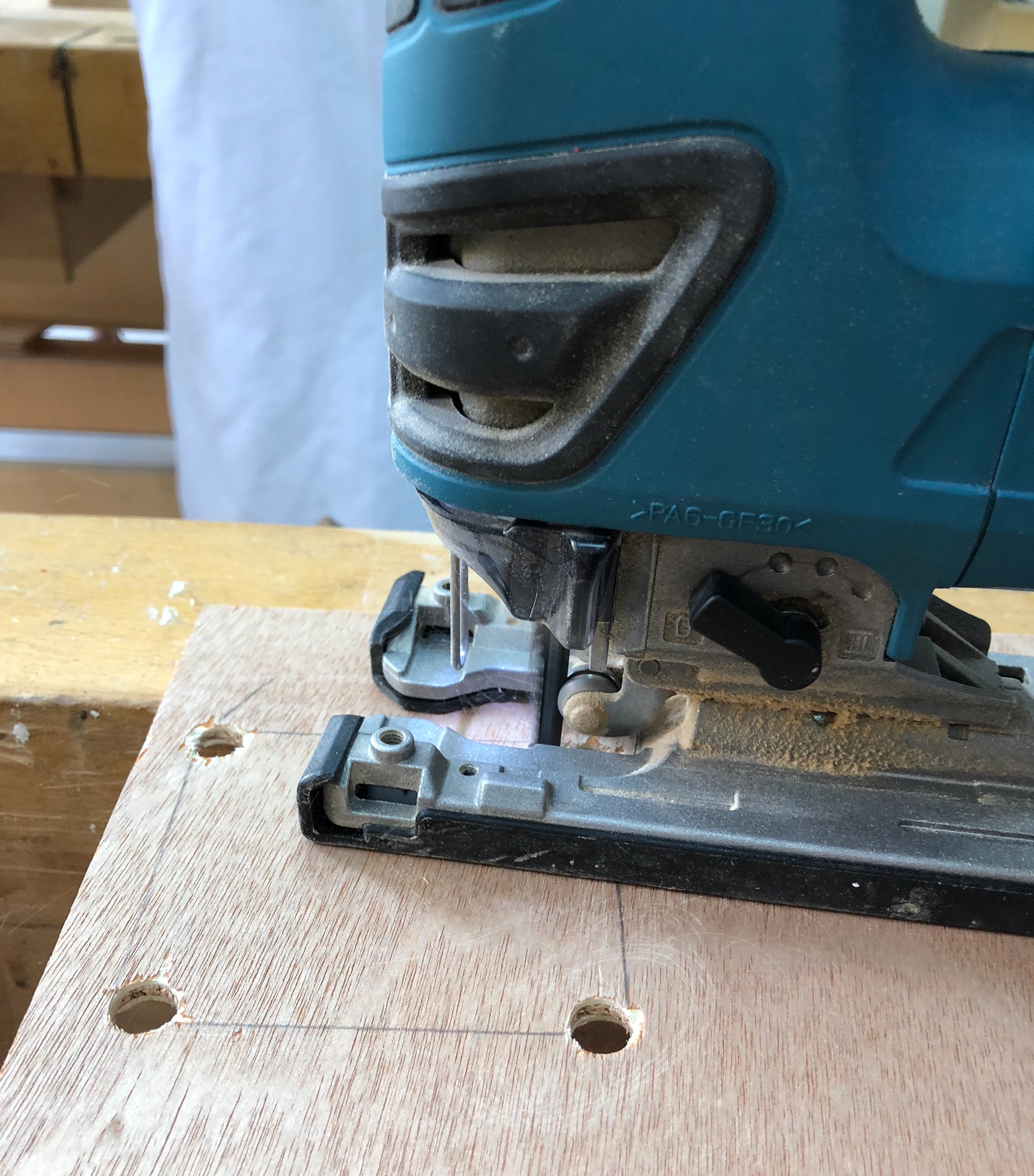

Used the Jig Saw machine to drill a hole to attach the strings across (which I will be using as horse hairs) and glued the sides to stick together and used a clamp to hold it.
